Tree命令作用

tree是一个能列出递归目录的命令，以图形显示驱动器或路径的文件夹结构，可以生成命令树。Windows和Linux都有这个工具，OS X上面竟然没有！！！下面我们就使用源码来编译安装它。
安装前，你需要确定你已经安装了Xcode命令行工具，如果没有安装，请在终端中执行"xcode-select --install"来安装。
QQ20151124-1@2x

下载源码

到下面地址下载源码并解压。

官网下载

变更编译配置

我们需要更改Makefile文件来匹配我们的环境，如果使用的是Linux，可以跳过此步骤。
我们使用的是osx，使用默认配置编译会报错。
找到55行左右的下面内容，去掉注释。

 # Uncomment for OS X:
CC=cc
CFLAGS=-O2 -Wall -fomit-frame-pointer -no-cpp-precomp
LDFLAGS=
MANDIR=/usr/share/man/man1
OBJS+=strverscmp.o
编译

osx的/usr/bin目录貌似是无法写入的，因此我们无需make install，直接将tree二进制文件拷贝到/usr/local/bin目录。

make
sudo cp tree /usr/local/bin/
测试
tree --help
usage: tree [-acdfghilnpqrstuvxACDFJQNSUX] [-H baseHREF] [-T title ]
	[-L level [-R]] [-P pattern] [-I pattern] [-o filename] [--version]
	[--help] [--inodes] [--device] [--noreport] [--nolinks] [--dirsfirst]
	[--charset charset] [--filelimit[=]#] [--si] [--timefmt[=]<f>]
	[--sort[=]<name>] [--matchdirs] [--ignore-case] [--] [<directory list>]
  ------- Listing options -------
  -a            All files are listed.
  -d            List directories only.
  -l            Follow symbolic links like directories.
  -f            Print the full path prefix for each file.
  -x            Stay on current filesystem only.
  -L level      Descend only level directories deep.
  -R            Rerun tree when max dir level reached.
  -P pattern    List only those files that match the pattern given.
  -I pattern    Do not list files that match the given pattern.
  --ignore-case Ignore case when pattern matching.
  --matchdirs   Include directory names in -P pattern matching.
  --noreport    Turn off file/directory count at end of tree listing.
  --charset X   Use charset X for terminal/HTML and indentation line output.
  --filelimit # Do not descend dirs with more than # files in them.
  --timefmt <f> Print and format time according to the format <f>.
  -o filename   Output to file instead of stdout.
  -------- File options ---------
  -q            Print non-printable characters as '?'.
  -N            Print non-printable characters as is.
  -Q            Quote filenames with double quotes.
  -p            Print the protections for each file.
  -u            Displays file owner or UID number.
  -g            Displays file group owner or GID number.
  -s            Print the size in bytes of each file.
  -h            Print the size in a more human readable way.
  --si          Like -h, but use in SI units (powers of 1000).
  -D            Print the date of last modification or (-c) status change.
  -F            Appends '/', '=', '*', '@', '|' or '>' as per ls -F.
  --inodes      Print inode number of each file.
  --device      Print device ID number to which each file belongs.
  ------- Sorting options -------
  -v            Sort files alphanumerically by version.
  -t            Sort files by last modification time.
  -c            Sort files by last status change time.
  -U            Leave files unsorted.
  -r            Reverse the order of the sort.
  --dirsfirst   List directories before files (-U disables).
  --sort X      Select sort: name,version,size,mtime,ctime.
  ------- Graphics options ------
  -i            Don't print indentation lines.
  -A            Print ANSI lines graphic indentation lines.
  -S            Print with CP437 (console) graphics indentation lines.
  -n            Turn colorization off always (-C overrides).
  -C            Turn colorization on always.
  ------- XML/HTML/JSON options -------
  -X            Prints out an XML representation of the tree.
  -J            Prints out an JSON representation of the tree.
  -H baseHREF   Prints out HTML format with baseHREF as top directory.
  -T string     Replace the default HTML title and H1 header with string.
  --nolinks     Turn off hyperlinks in HTML output.
  ---- Miscellaneous options ----
  --version     Print version and exit.
  --help        Print usage and this help message and exit.
  --            Options processing terminator.

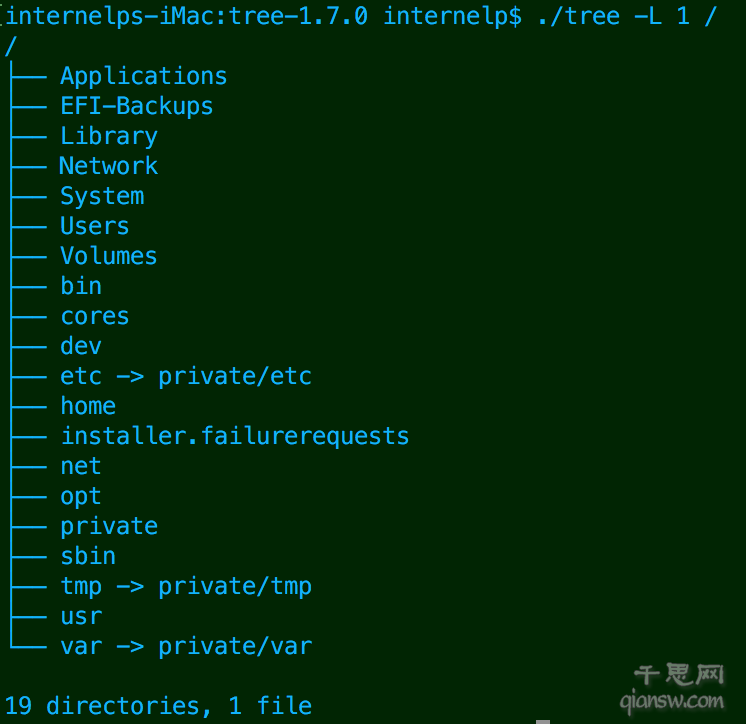

tree  /private/ -L 1
/private/
├── etc
├── tftpboot
├── tmp
└── var

4 directories, 0 files
